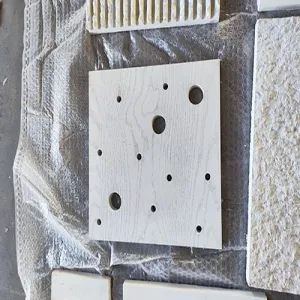

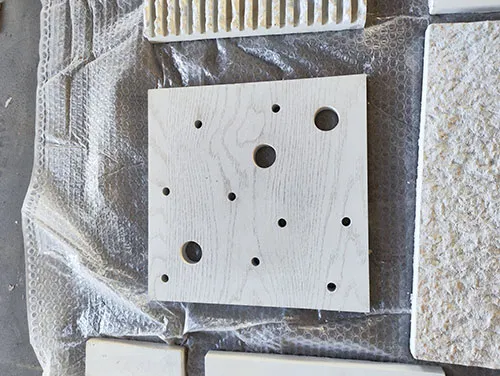

Corrosion-Resistant UHPC Perforated Curtain Wall Panels

Corrosion-Resistant UHPC Perforated Curtain Wall Panels offer a durable and visually striking solution for modern architectural façades. Made from ultra-high-performance concrete (UHPC), these panels provide exceptional resistance to corrosion, weathering, and chemical exposure, ensuring long-term structural integrity. The perforated design allows natural light penetration, improved ventilation, and dynamic shadow effects, enhancing both aesthetics and building functionality. Lightweight and easy to install, these panels reduce structural load while maintaining high compressive and flexural st...

udział：

Skontaktuj się z nami

Żądanie online

Poczta：liuyihui@njhaoyang.cn

Szczegóły

Where Structural Strength Meets Ethereal Beauty

Redefining Concrete Possibilities

Our UHPC perforated panels shatter conventional perceptions of concrete:

Ultra-Thin Profile: Minimum thickness of just 8mm maintains structural integrity even at 60% open area ratio

Light-Transmitting Marvel: Optional light-guiding fibers or embedded LED systems create celestial light patterns at night

Parametric Precision: Supports complex cutouts (circles/fractals/custom designs) with 0.5mm accuracy

Unmatched Performance Advantages

✓ Lightweight: Standard 15mm panels weigh ≤35kg/m², reducing structural loads
✓ Wind-Resistant: Special reinforcement ribs withstand 1200Pa wind tunnel testing
✓ Self-Supporting: 2m spans require no additional framing (EN 12467 certified)

The Architect's Ultimate Tool

Light Modulator: Adjust 20%-80% natural light penetration through aperture density

Dynamic Facades: Modular assembly creates "breathing" building skins

Acoustic Enhancement: Special perforation patterns achieve NRC 0.6 sound scattering

Technical Specifications

Parameter	Specification
Max. Size	3000×1500mm
Standard Thickness	12/15/20mm
Cutout Tolerance	±0.3mm
Fire Rating	Class A1 Non-combustible

Customization Services

▸ Grasshopper parametric design integration
▸ Infill options (laminated glass/acrylic/living plant systems)
▸ Surface finishes: Patina copper/mirror polish/sandblasted matte
